HVAC Circuit Board Product Label Design
This wasn’t just a label—it was a chance to make a technician’s job easier.
The product: a next-gen HVAC circuit board with built-in NFC programming. Instead of crawling into tight, dark basements to manually configure settings, techs could now program the board remotely using a smartphone.
But the NFC feature only works if the user knows exactly where to place their phone. And with the board’s irregular shape, that wasn’t obvious.

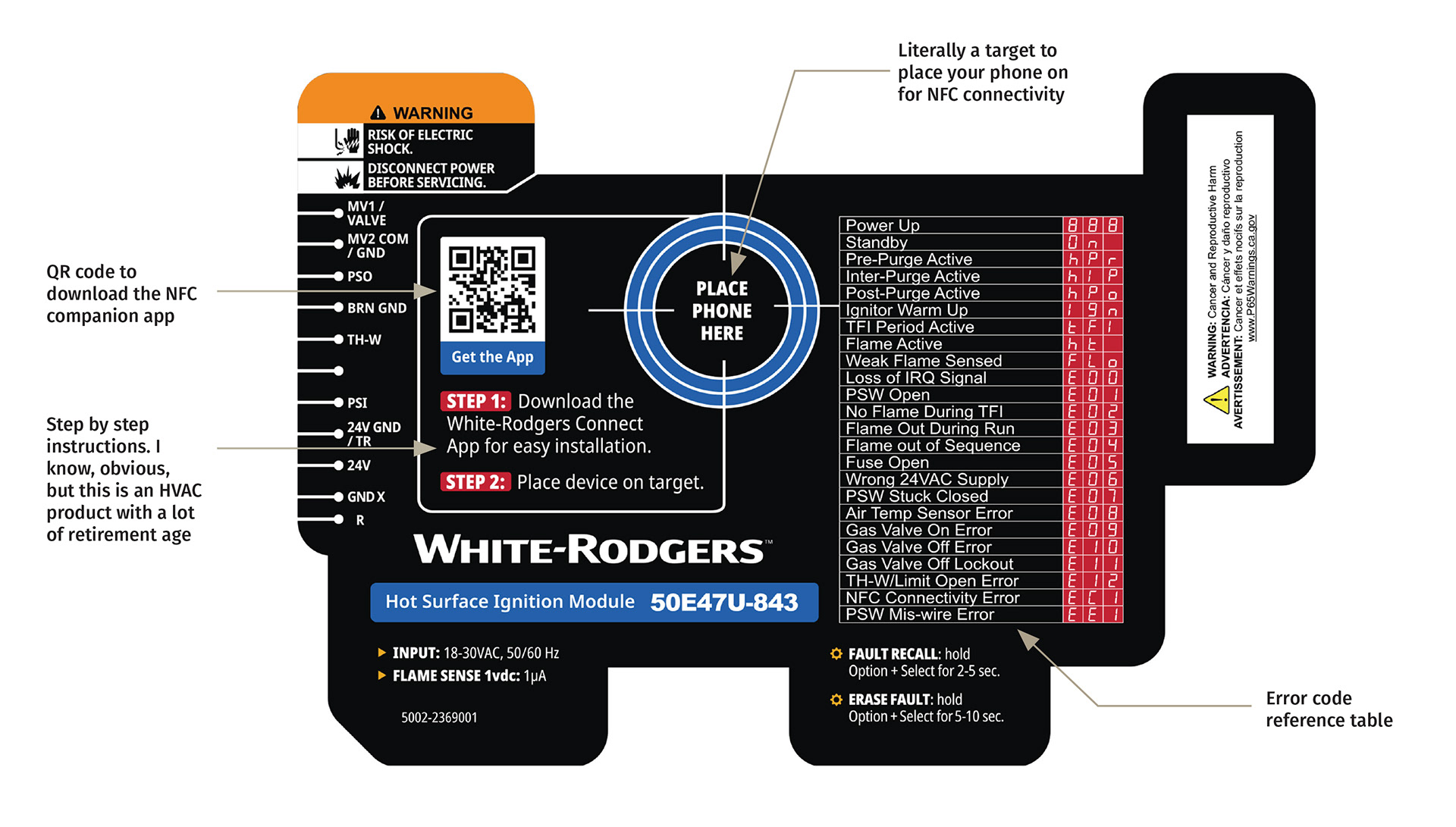

I designed a label that acted like a user interface—bold, directional, and unmistakable. A clear target graphic around “PLACE PHONE HERE” turns the label into a visual guide, streamlining the process and reducing friction.
Form met function, and the result is a label that enhances the product, not just explains it.

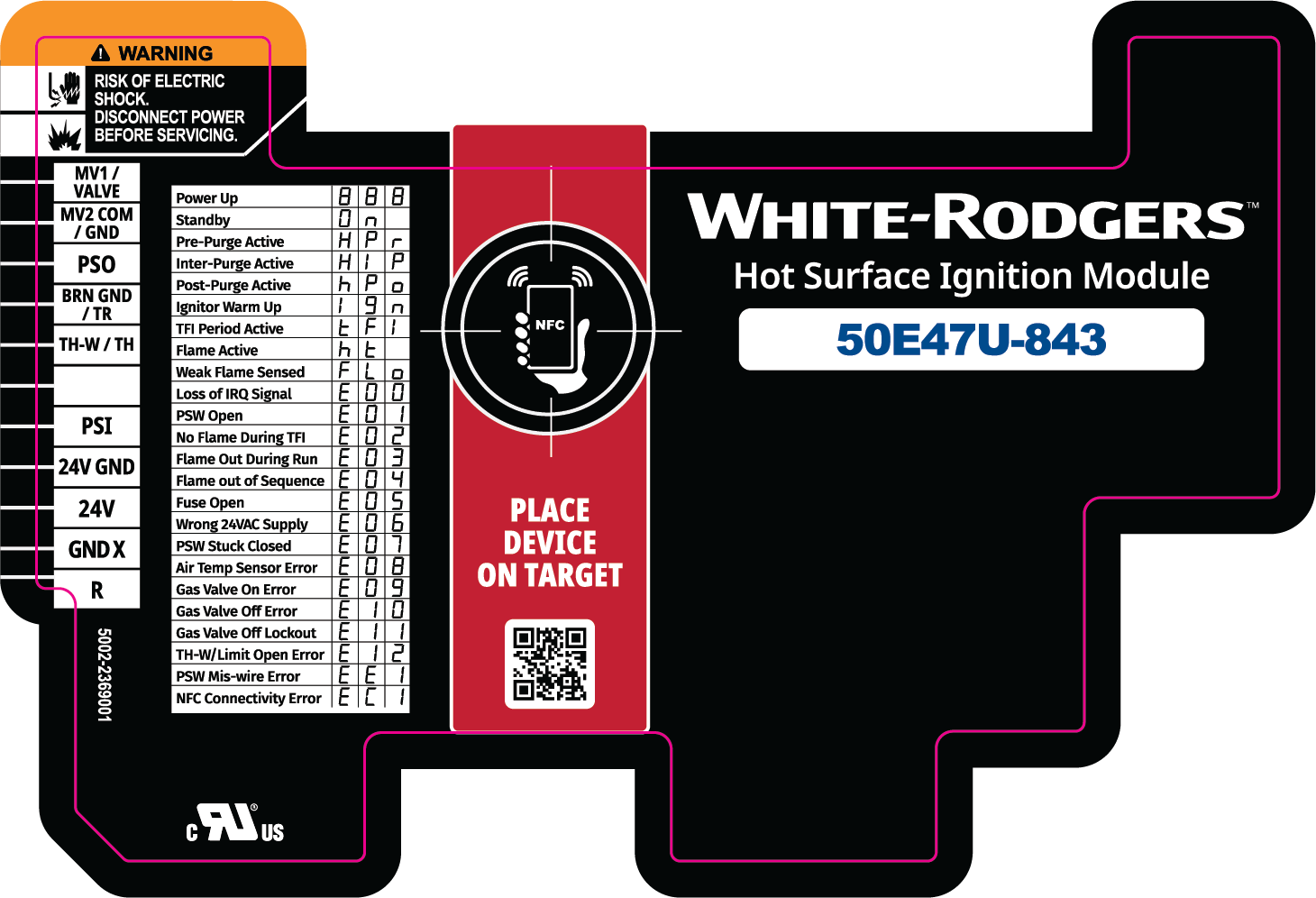

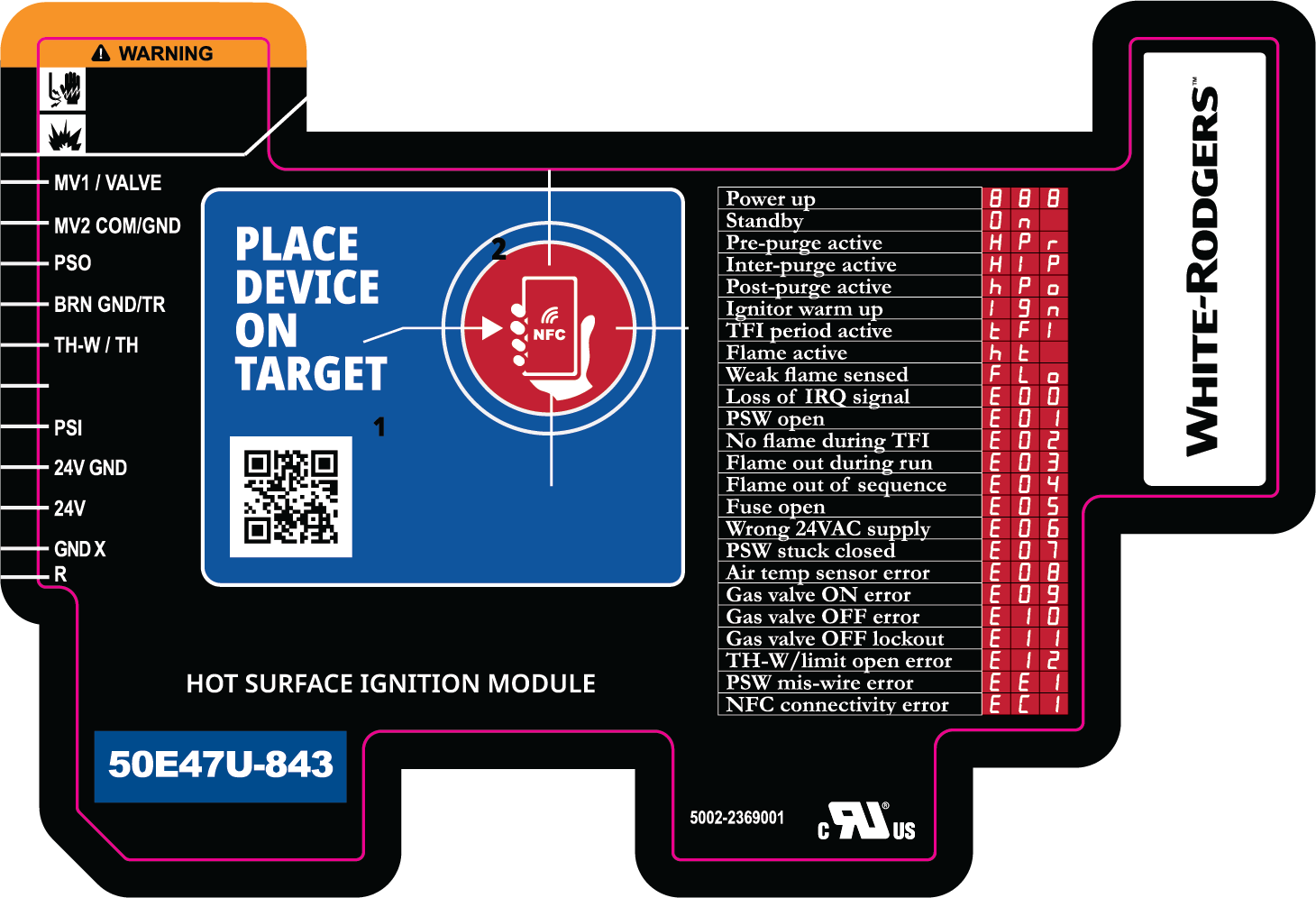

These are 2 earlier design ideas that were scrapped, thankfully. The one on the left just didn't work and the one on the right, well, let's just say it looked a bit too much like the branding that a certain political party used in Germany in the 1930s and 40s.

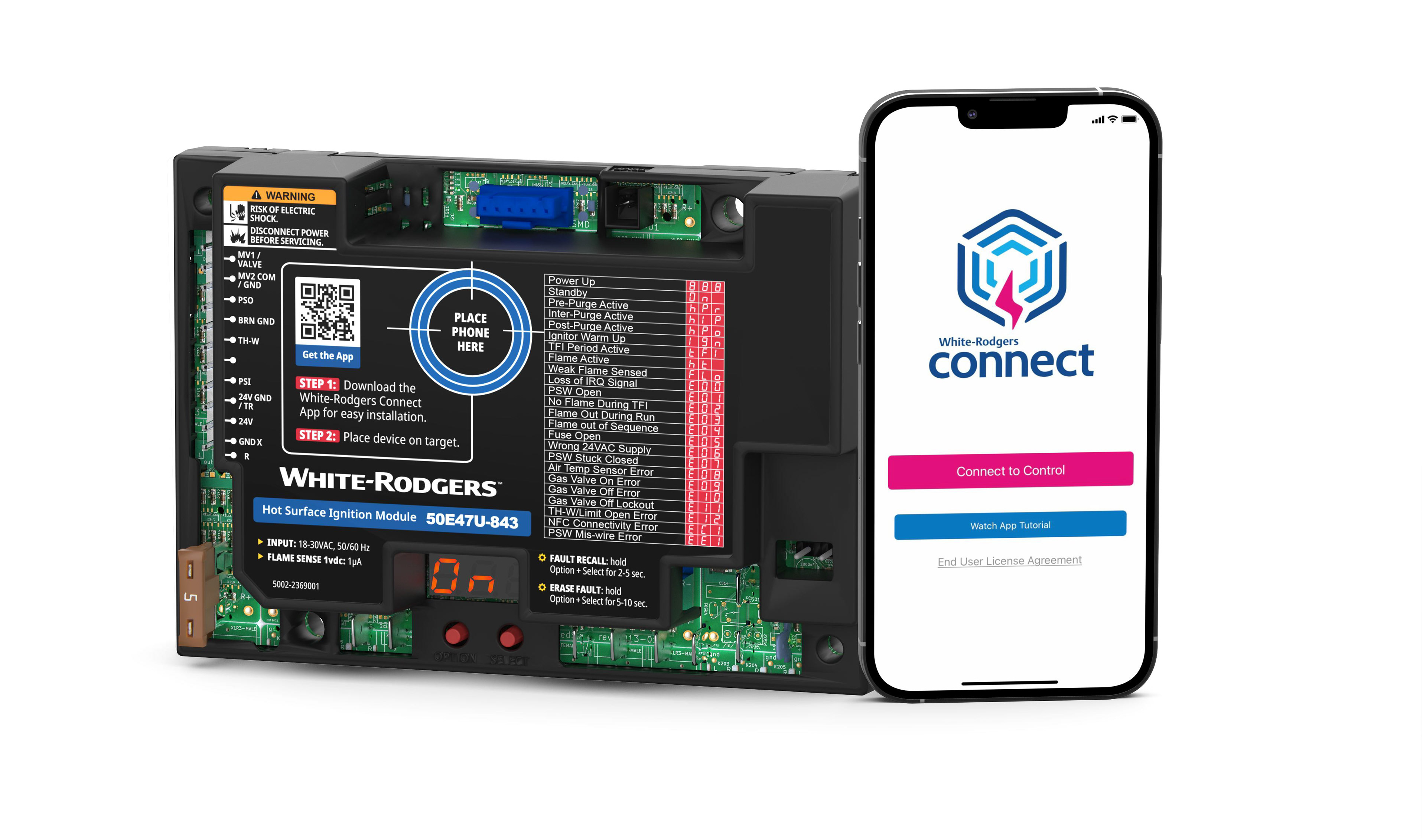

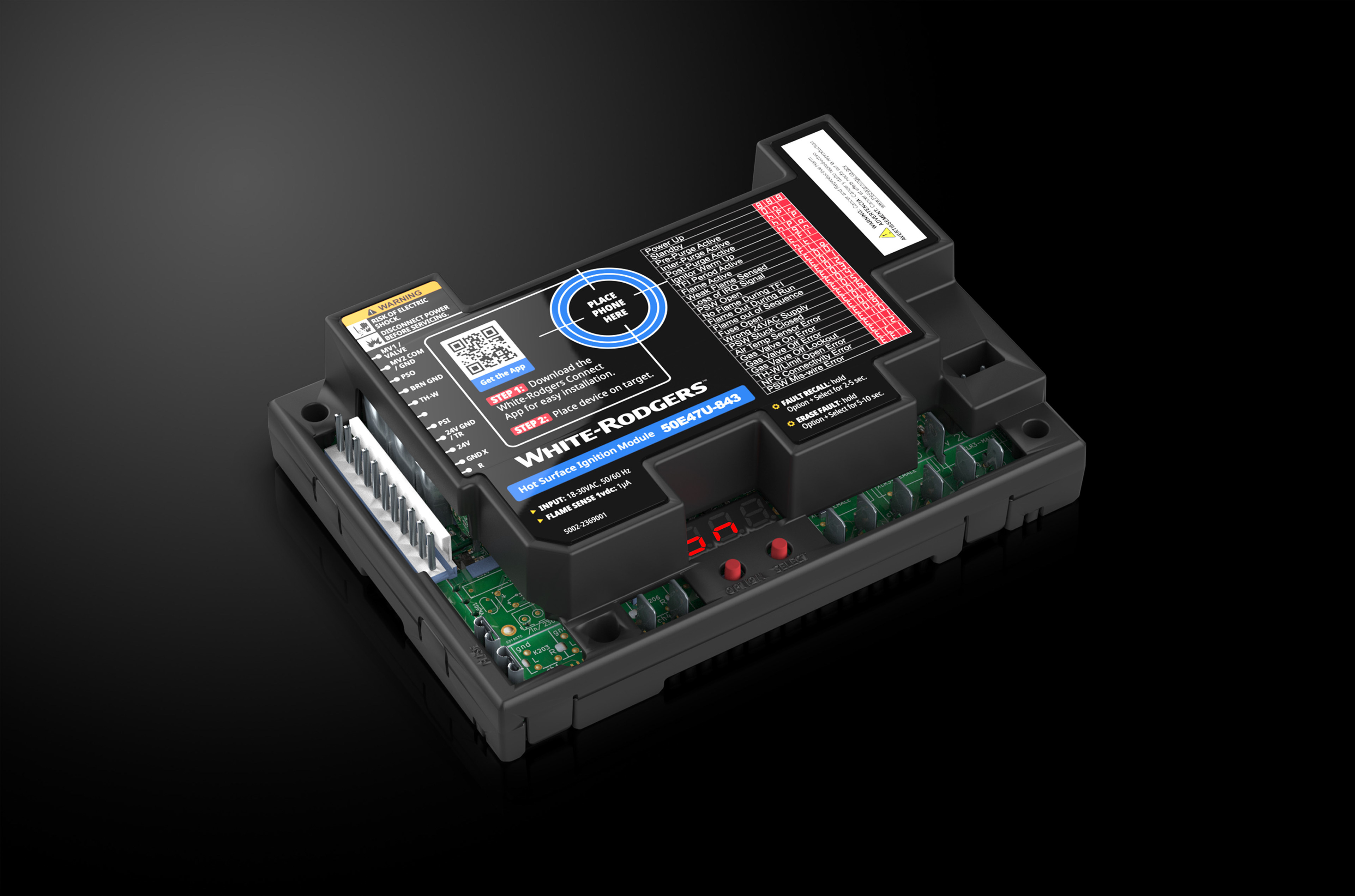

3D rendering of circuit board and companion app created using Keyshot and Photoshop

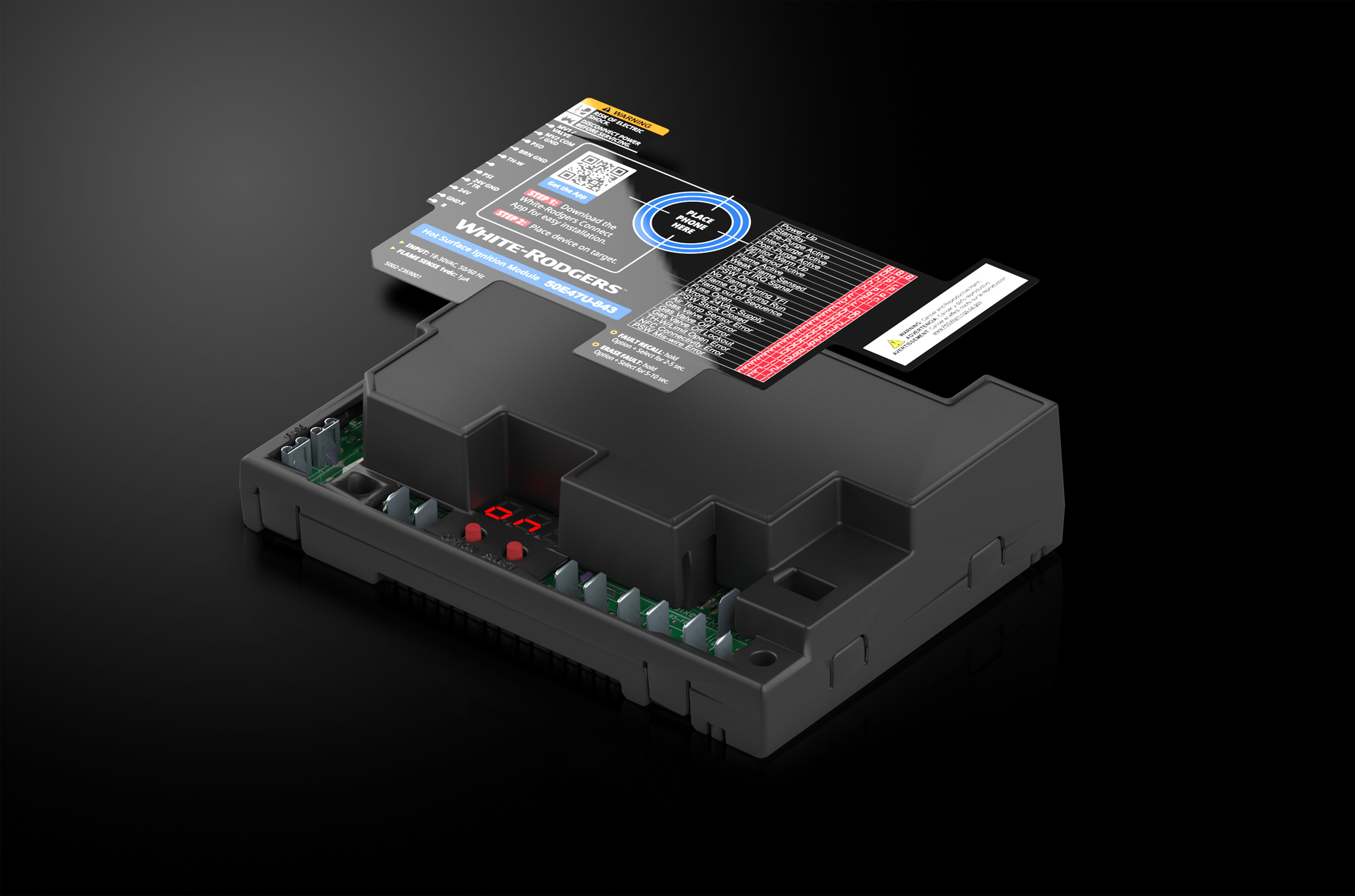

3D rendering of circuit board and companion app created using Keyshot and Photoshop
